21.5" IPS Full HD 1920x1080 Carry-on Broadcast Director Monitor with 3G-SDI HDMI AV YPbPr P215-9HSD-CO
Model：P215-9HSD-CO
Introduction
Screen Size： 21.5" IPS
Resolution： 1920x1080 pixels
Aspect ratio： 16:9
Brightness： 250cd/m2
Input
3G-SDI, HDMI, YPbPr, Video, Audio(L/R)
Output
3G-SDI, HDMI, YPbPr, Video, Stereo Headphone, Speaker(built-in)
DM
Shop/2017/9/SEETEC-箱載式監(jiān)視器-DM2.jpg
Download
正在提交中....
Contact Us
OVERVIEW
FEATURES
SPECIFICATIONS
VIDEO
APPLICATION
ACCESSORIES
SEETEC Professional Broadcast LCD Monitor has been widely used in TV news production, broadcasting house, TV broadcasting truck and other fields. Since this series is working with other adjacent professional equipments, therefore, high stability, high reliability and electromagnetic compatibility are very important to make sure the whole system work smoothly.
The full Aluminum case not only makes the product more solid and durable, but also solves the problem of heat dissipation. Full Aluminum case improves the anti-interference capability! More Stablity and Reliability！
High Quality IPS Panel
P215-9HSD-CO is a 21.5" full HD 1920X1080 resolution, high contrast 3000:1 monitor, with wide viewing angle IPS Panel. The Color Space is rich and high in performance which brings more details, true color and a better sensory experience for the user.
Wider Viewing Angle
Enjoy Consistent Images from Any Perspective
P215-9HSD-CO uses an IPS panel, which provides a wide 178°/178° viewing angle and brightness output, up to 250nit, High Contrast 3000:1. This means you'll be able to see accurate, consistent and bright images from any point of view.
Function Buttons for Easy Operation
Most professional applications require the funtions in Professional Broadcast LCD Monitors, such as: Peaking Focus Assist, Pixel-to-Pixel Mode, Center Marker/ Screen Marker, etc., which can be set on F1~F6 (fast key) on the front panel.
Multiple Inputs and Outputs
Multiple input formats meet the needs of the professional input and display functions with all HD, SD analogue video signal inputs. The monitor comes with 3G HD-SDI, HDMI, Composite, and Component Input and Ouput.
P215-9HSD-CO has both HDMIand SDI in and out, to allow it not only display live signals, but also send them out to other monitors simultaneously. It's able to display live picture on multiple displays at the same time while it still maintains the original video quality.
Aviation Aluminum Case Show
Innovative design portable Aviation Aluminum Case.

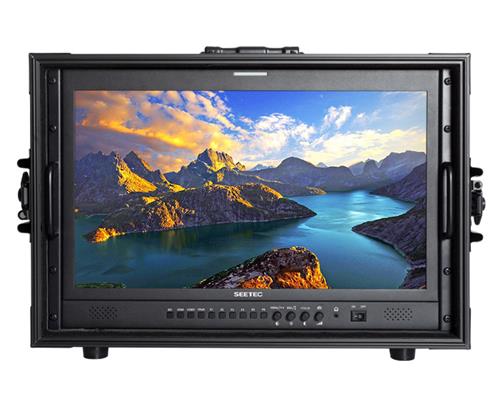

P215-9HSD-CO is 21.5'' full HD resolution 1920x1080 monitor, IPS panel wide viewing angle and super-thin full Aluminum case, which is specially suitable for field shooting and post production. Broadcast quality design , two-channel stereo headphone jack for director easy monitoring. HDMI, SDI HD signal input and output functions.
Unique Design for High Efficency

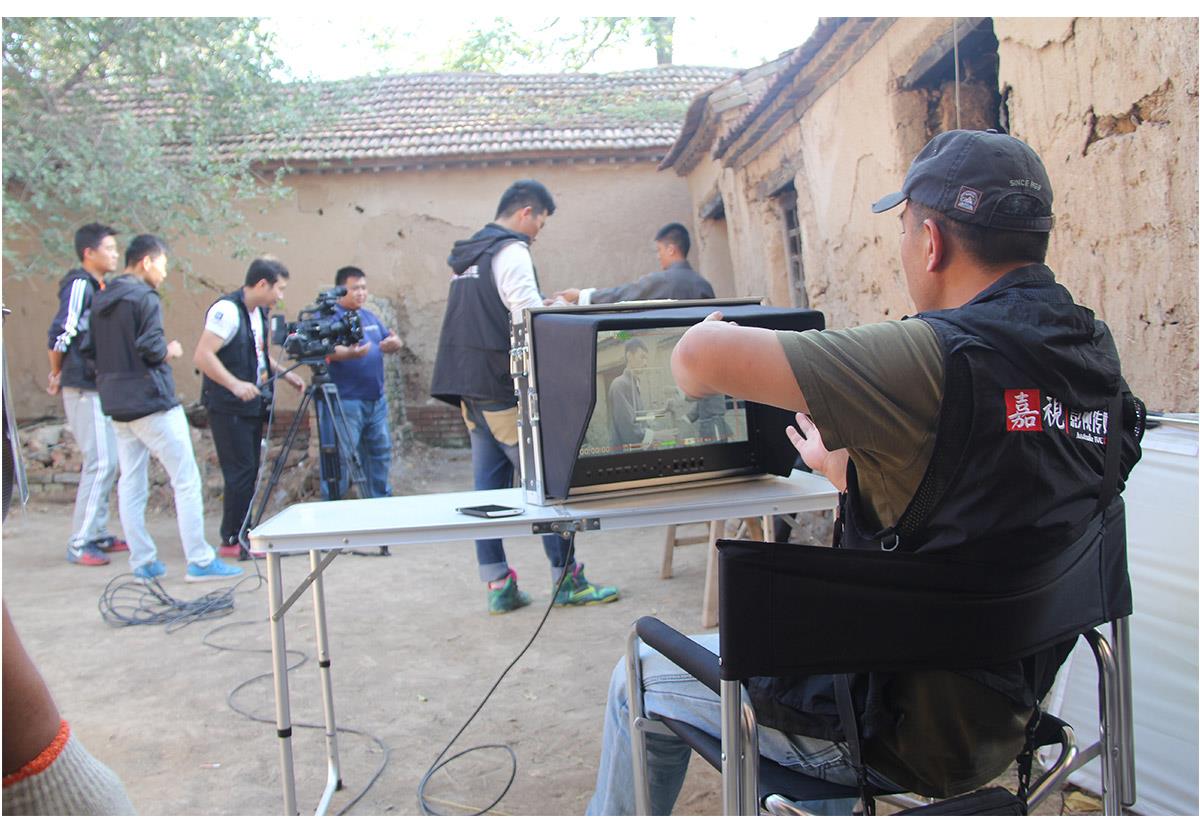

Time and Costs are important for film crews. This becomes more obvious if there are frequent scene changes during production.The P215-9HSD-CO is based on how monitors are being used by film crews. Whether packing down or setting up a simplified design makes this monitor ready for use quickly. There are no complex setup processes to go through.
Easy to Carry-on
This innovative design portable Aviation Aluminum Case with wheels, making it well suited for field production and handling to change the environments with speed.

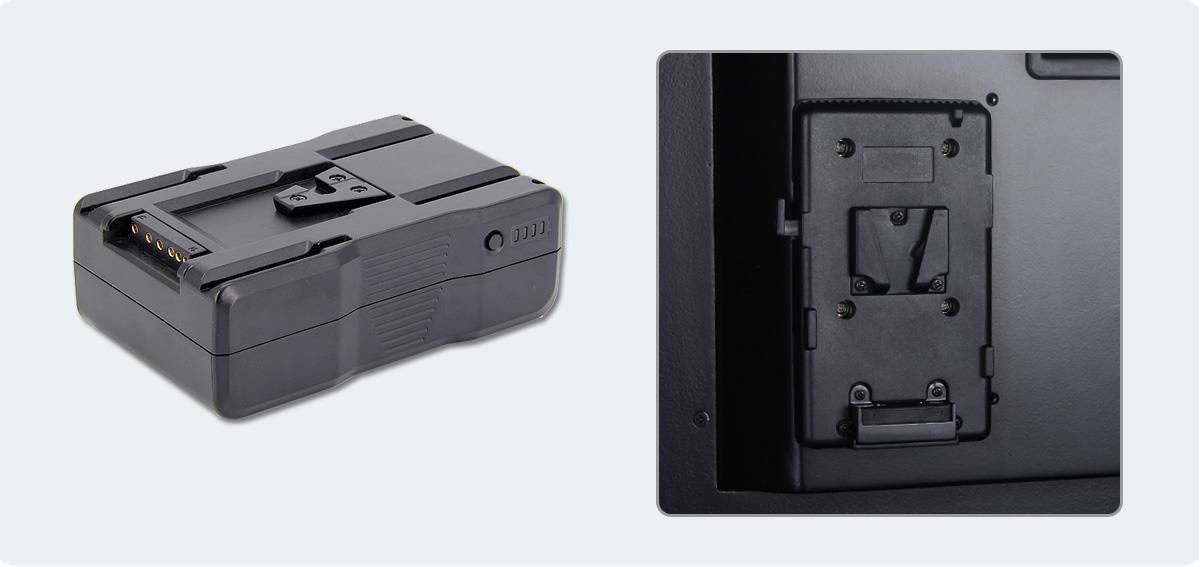

Extended Battery Time
Field production often uses DC power. The P215-9HSD-CO's V-Mount battery Plate is compatible with 14.4v Broadcast Lithium-Batteries and can continuously operate for over 6 hours when using a 130Wh Broadcast Lithium-Battery. And have Panasonic Anton Battery Plate for you choice.
-
Foldable Sunshade
New extended screen hood, to acquire the ideal visual effect in almost all environments.

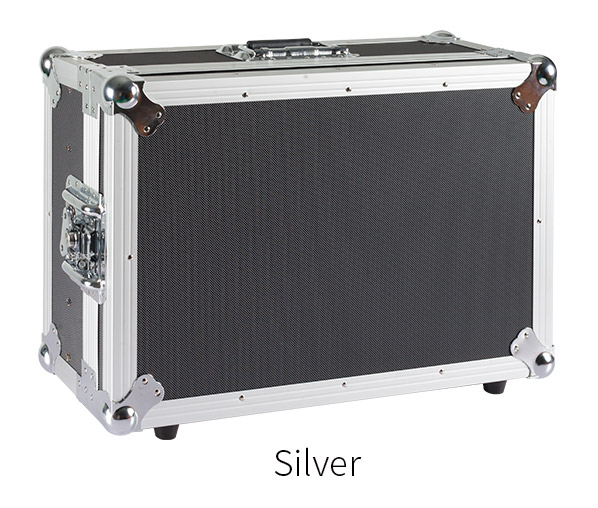

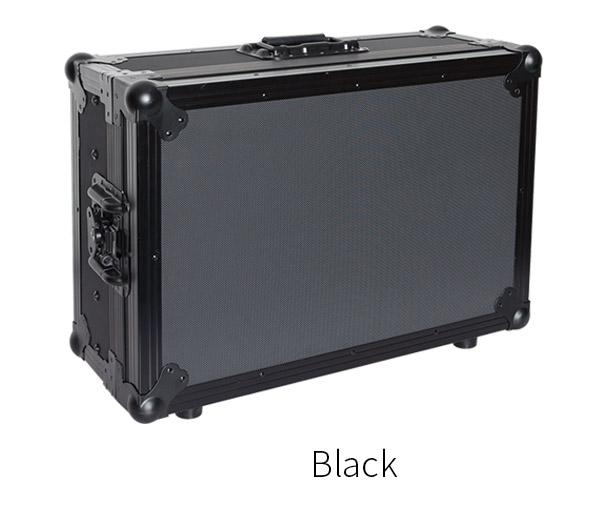

Black/ Silver Suitcase
The black / silver suitcase is based on the actual shipment.
* Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
* Check Field (Red, Green, Blue, Mono)
* Camera Mode
* Pixel to Pixel
* Center Marker
* Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
* Image Flip (Horizontal, Vertical, Hor&Ver)
* Image Freeze
* Zoom All
* U/D & L/R Zoom
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It's shows Red highlight over parts of the monochrome image in focus.
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.
It will be full screen under camera mode.
Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%,2.35:1)
The Horizontal, Vertical and Hor&Ver of the image around flip.
| Model | P215-9HSD-CO |
| Screen Size | 21.5" IPS |
| Color Depth | 16.7M |
| Resolution | 1920×1080 pixels |
| Aspect Ratio | 16:9 |
| Brightness | 250cd/m² |
| Contrast Ratio | 3000:1 |
| Backlight | LED |
| Viewing Angle | 89°/89°(L/R) 89°/89°(U/D) |
| 1 X BNC | 3G-SDI |
| 1 X HDMI | HDMI |
| 3 X BNC | YPbPr |
| 1 X BNC | Video |
| 2 X RCA | Audio(L/R) |
| 1 X BNC | 3G-SDI |
| 1 X HDMI | HDMI |
| 3 X BNC | YPbPr |
| 1 X BNC | Video |
| Audio Out | Stereo Headphone, Speaker |
| 480i/576i |
| 720p(60/59.94/50/30/29/25/24/23.98) |
| 1080i(60/59.94/50) |
| 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
| 4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz) |
| Input Voltage | DC12V |
| Power Consumption | ≤15W |
| Working Temperature | -10°C~50°C |
| Storage Temperature | -20°C~60°C |

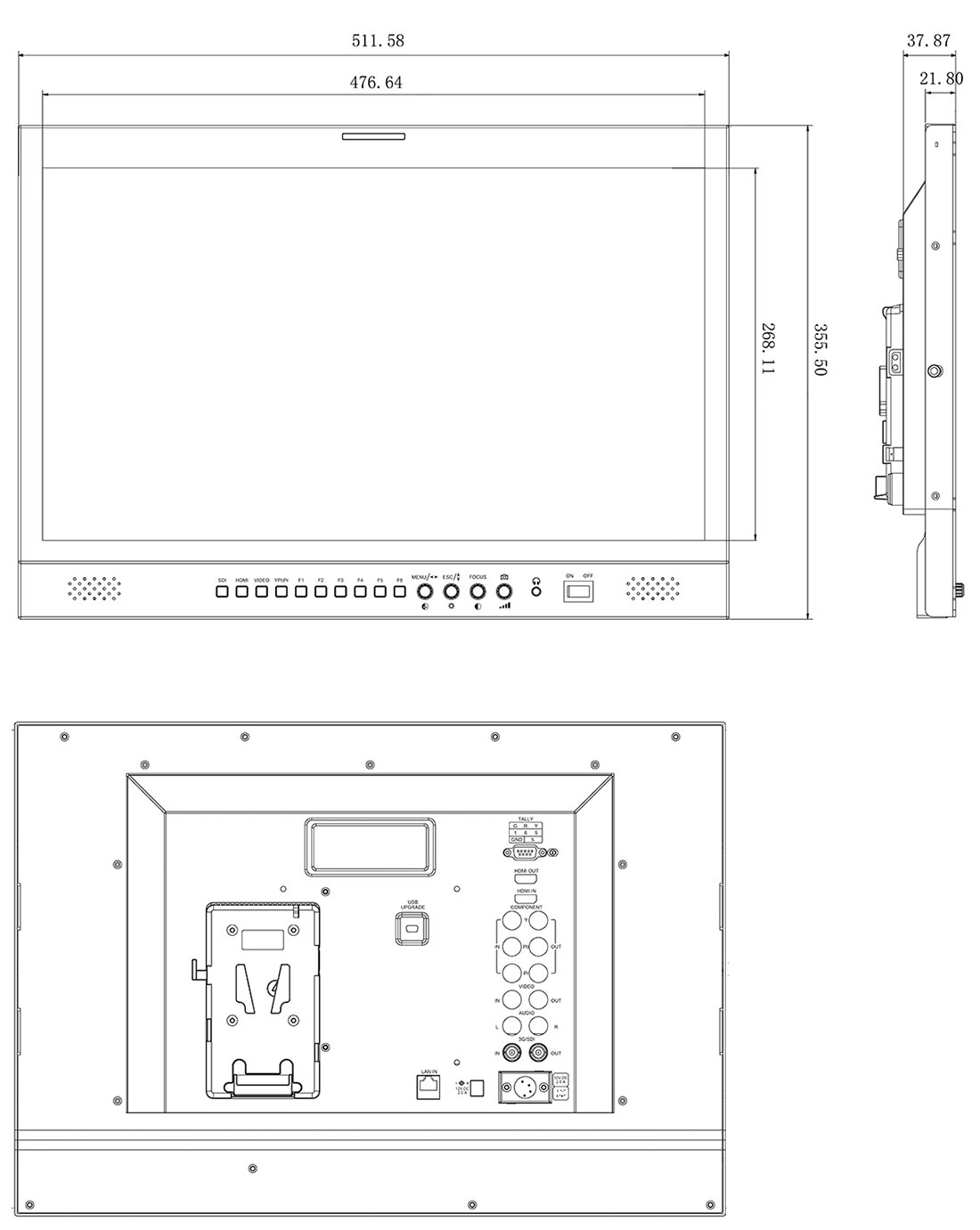

| Unit Size | 511.58Lx355.5Hx37.87D(mm) / 590L×410H×260D mm (W/ suitcase) |
| Unit Weight | 14.5kg (W/ suitcase) |
| Outer Carton Qty | 1 |
| Outer Carton Size | 647*315*470 (mm) |
| Gross Weight | 15.8kgs |
| * Peaking Focus Assist(Red highlight over parts of the monochrome image in focus) |
| * Center Marker |
| * Screen Marker (80%,85%,90%,93%,96%,2.35:1) |
| * Image Freeze |
| * Image Flip (H, V, H/V) |
| * Camera Mode |
| * Pixel-to-Pixel |
| * Check Field (Red,Green,Blue,Mono) |
| * Zoom All |
| * U/D & L/R Zoom |
| * Custom Color Temperature |
| * Built-in LED tally indicators |

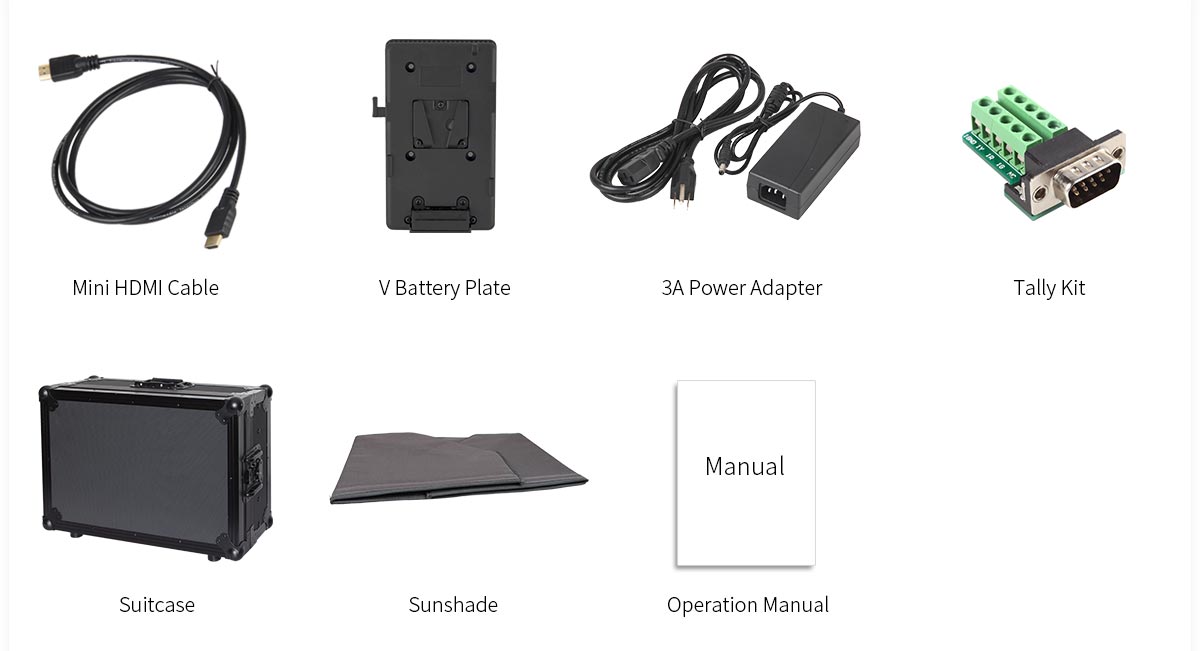

Standard Accessories:
1× Mini HDMI Cable
1× V Battery Plate
1× 3A Power Adapter
1× Tally Kit
1× Suitcase
1× Sunshade
1× Operation Manual
