SEETEC 21.5 Inch 3G-SDI/ 4K HDMI Broadcast Carry-on Director Monitor with IPS Full HD 1920x1080 4K215-9HSD-192-CO
Model：4K215-9HSD-192-CO
Introduction
Screen Size： 21.5" IPS
Resolution： 1920x1080 pixels
Aspect ratio： 16:9
Brightness： 250cd/m2
Input
3G-SDI, HDMI, YPbPr, DVI, Video, Audio(L/R)
Output
3G-SDI, HDMI, YPbPr, Video, Stereo Headphone, Internal Speaker
DM
Shop/2018/6/173 215-Specification1.jpg
Download
正在提交中....
Contact Us
OVERVIEW
FEATURES
SPECIFICATIONS
VIDEO
APPLICATION
ACCESSORIES
SEETEC Professional Broadcast LCD Monitor has been widely used in TV news production, broadcasting house, TV broadcasting truck and other fields. Since this series is working with other adjacent professional equipments, therefore, high stability, high reliability and electromagnetic compatibility are very important to make sure the whole system work smoothly.
Stability and Reliability
The full aluminum case not only makes the product more solid and durable, but also solves the problem of heat dissipation. Full aluminum case improves the anti-interference capability!
Professional Auxiliary Shooting Functions
Now it's easy to get perfect focus and framing!
SEETEC monitor is ideal for high end broadcast monitoring because they feature high quality focus assist function, also includes check field, image freeze, image flip, center marker, safe frame, color temperature adjust, assist users to accurately monitor when shooting, making and playing movies/ videos.
Now it's easy to get perfect focus and framing!
SEETEC monitor is ideal for high end broadcast monitoring because they feature high quality focus assist function, also includes check field, image freeze, image flip, center marker, safe frame, color temperature adjust, assist users to accurately monitor when shooting, making and playing movies/ videos.
1920X1080 Full HD Panel
With the 4K215-9HSD-192-CO's 21.5-inch 1920×1080 IPS Full HD panel what you see is truly viewing angles outputting crisp, clear shots on the field, which means less time in the editing room. The 4K215-9HSD-192-CO's Full HD Panel is the tool of choice for high quality color reproduction.
With the 4K215-9HSD-192-CO's 21.5-inch 1920×1080 IPS Full HD panel what you see is truly viewing angles outputting crisp, clear shots on the field, which means less time in the editing room. The 4K215-9HSD-192-CO's Full HD Panel is the tool of choice for high quality color reproduction.
IPS 178° Wider View Angle
High Quality: no brightened dot, no streaking
178° Wider View Angle: enjoy consistent images from any perspective.
More Precise Color Restoration: wide color gamut LCD panel ensure the monitor more precise color restoration exquisite picture quality more rich color levels.
178° Wider View Angle: enjoy consistent images from any perspective.
More Precise Color Restoration: wide color gamut LCD panel ensure the monitor more precise color restoration exquisite picture quality more rich color levels.
True Color . Professional Color Calibration
Use Rec.709 color standard
SEETEC uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.
Use Rec.709 color standard
SEETEC uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.
Accurate Color Reproduction
SEETEC monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.
SEETEC monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.
Innovation OSD Operation
4K215-9HSD-192-CO not only set up four "F key" for peaking focus assist, check field, camera mode function, pixel to pixel, Center Marker, Safe Marker, Image Flip and so on, reserves the knob for professional users. Double functions and knob type coding switch are SEETEC's exclusive technology feature, which will bring you more convenient and rapid operate feeling.
4K215-9HSD-192-CO not only set up four "F key" for peaking focus assist, check field, camera mode function, pixel to pixel, Center Marker, Safe Marker, Image Flip and so on, reserves the knob for professional users. Double functions and knob type coding switch are SEETEC's exclusive technology feature, which will bring you more convenient and rapid operate feeling.
Professional Monitoring
4K215-9HSD-192-CO is an incredibly high quality monitor that's versatile enough to be used from the broadcast facility, mobile live production or on set for feature film production! The monitor comes with 3G/HD/SD-SDI, HDMI, YPbPr, Audio, Video, DVI inputs. Multiple input formats to meet all HD, SD, analogue video signal input and display demand Professional functions set.
4K215-9HSD-192-CO is an incredibly high quality monitor that's versatile enough to be used from the broadcast facility, mobile live production or on set for feature film production! The monitor comes with 3G/HD/SD-SDI, HDMI, YPbPr, Audio, Video, DVI inputs. Multiple input formats to meet all HD, SD, analogue video signal input and display demand Professional functions set.
3-color Tally Light
Both front and rear side
4K215-9HSD-192-CO monitors feature clear LCD screens with tally so it's the perfect solution for live broadcasts. Unlike a simple tally light, 4K215-9HSD-192-CO includes tally lights on the front and near panel displayed in red, green or yellow tally signal. This means during live production you will always know when you are recording or on-air, or you can see which camera is cued up on your switcher's preview output. Tally is connected via an industry standard parallel pin connector on the rear panel.
Both front and rear side
4K215-9HSD-192-CO monitors feature clear LCD screens with tally so it's the perfect solution for live broadcasts. Unlike a simple tally light, 4K215-9HSD-192-CO includes tally lights on the front and near panel displayed in red, green or yellow tally signal. This means during live production you will always know when you are recording or on-air, or you can see which camera is cued up on your switcher's preview output. Tally is connected via an industry standard parallel pin connector on the rear panel.

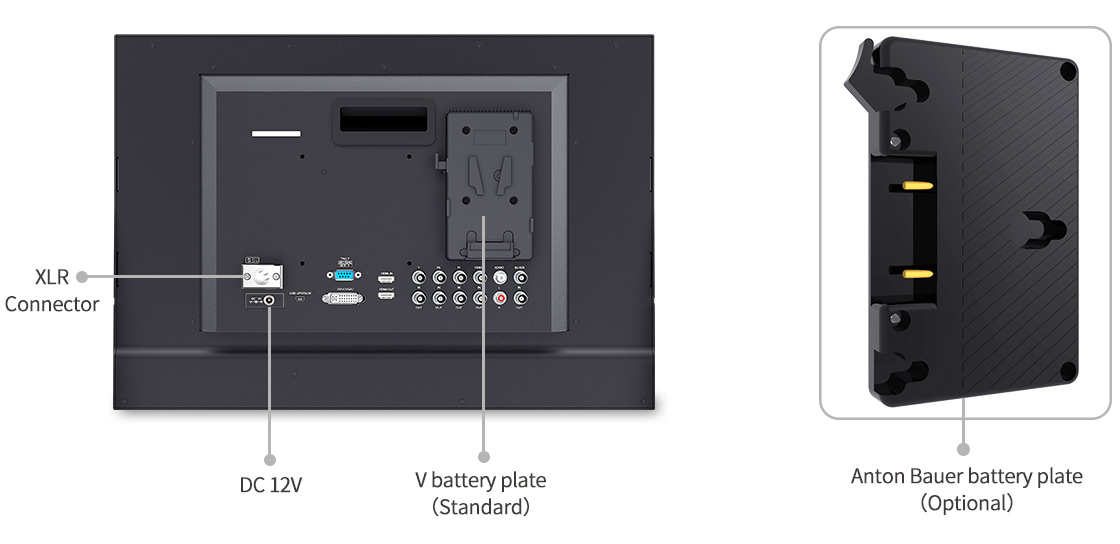

Hassle-free Power
Monitoring anywhere you need it！
We've made it easy to power the monitor. 4K215-9HSD-192-CO can be powered in two ways: with an DC adapter or lithium batteries. The 4K215-9HSD-192-CO has a flexible battery system that supports V battery plate (standard), Anton Bauer battery plate of your choice.
Monitoring anywhere you need it！
We've made it easy to power the monitor. 4K215-9HSD-192-CO can be powered in two ways: with an DC adapter or lithium batteries. The 4K215-9HSD-192-CO has a flexible battery system that supports V battery plate (standard), Anton Bauer battery plate of your choice.
Extended Battery Time
Field production often uses DC power. The 4K215-9HSD-192-CO's V-Mount battery plate is compatible with 14.4v Broadcast Lithium-Batteries and can continuously operate for over 6 hours when using a 130Wh Broadcast Lithium-Battery (Optional). And have Panasonic Anton Battery Plate for you choice.
Field production often uses DC power. The 4K215-9HSD-192-CO's V-Mount battery plate is compatible with 14.4v Broadcast Lithium-Batteries and can continuously operate for over 6 hours when using a 130Wh Broadcast Lithium-Battery (Optional). And have Panasonic Anton Battery Plate for you choice.

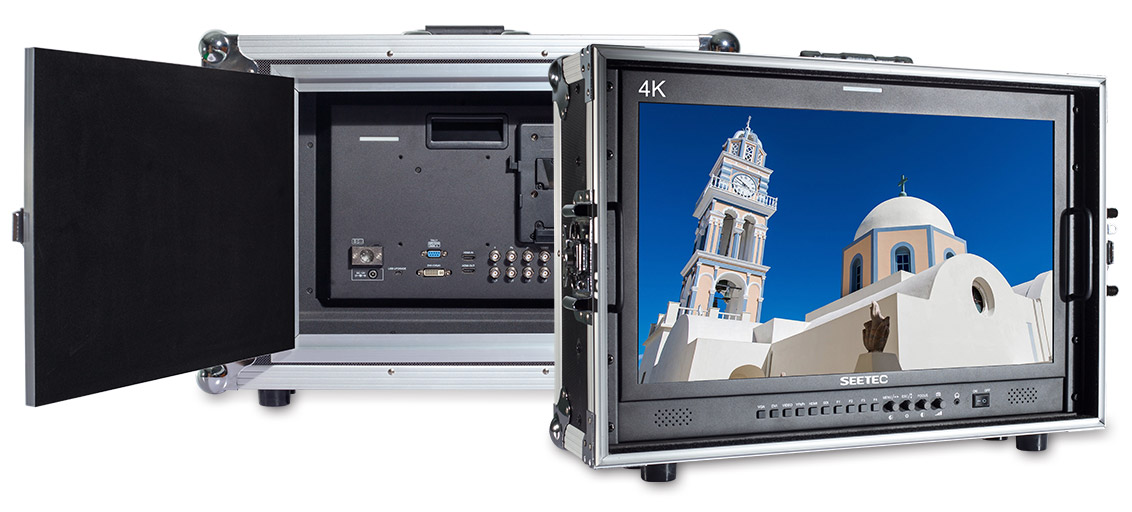

Innovative Carry-on Monitor
.Assembled with a portable aluminum case that can effectively protect the monitor and facilitate the transportation and carrying.
.4K215-9HSD-192-CO is 21.5'' full HD resolution 1920x1080 monitor, IPS panel wide viewing angle and super-thin full Aluminum case, which is specially suitable for field shooting and post production.
.Broadcast quality design, two-channel stereo headphone jack for director easy monitoring.
.HDMI, SDI HD signal input and output functions.
.Assembled with a portable aluminum case that can effectively protect the monitor and facilitate the transportation and carrying.
.4K215-9HSD-192-CO is 21.5'' full HD resolution 1920x1080 monitor, IPS panel wide viewing angle and super-thin full Aluminum case, which is specially suitable for field shooting and post production.
.Broadcast quality design, two-channel stereo headphone jack for director easy monitoring.
.HDMI, SDI HD signal input and output functions.

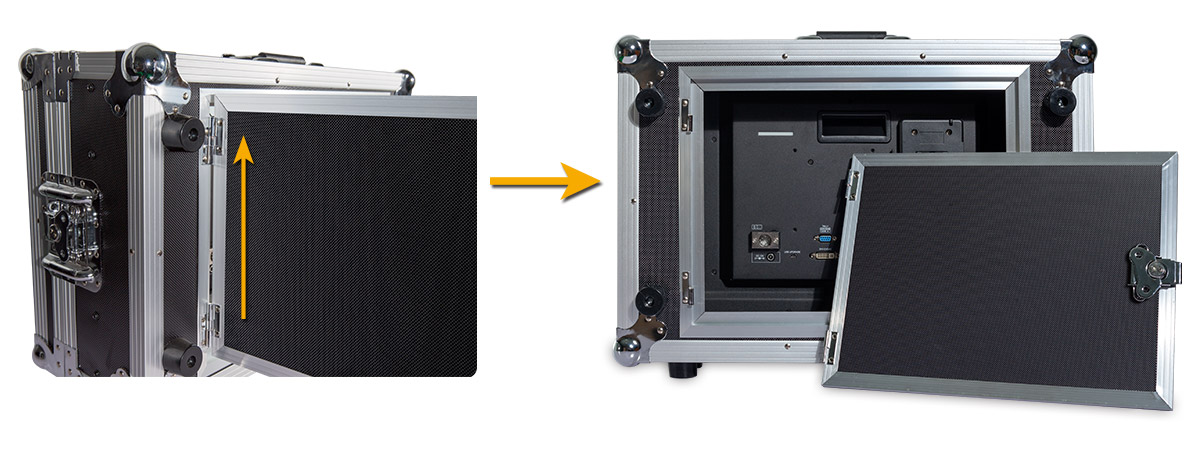

Carry-on Aluminium Case
Suitable for the strict location shooting
.Carry-on Aluminium Case (hand-held for easy carry);
.Easy for disassemble (front and rear cover disassemble easy for screen image monitoring and signal connection).
.Front and rear covers for quick assemble and disassemble, speed the frequent switch between scenes, save the time of preparation the photographic equipments, so that get into work fastly!
Suitable for the strict location shooting
.Carry-on Aluminium Case (hand-held for easy carry);
.Easy for disassemble (front and rear cover disassemble easy for screen image monitoring and signal connection).
.Front and rear covers for quick assemble and disassemble, speed the frequent switch between scenes, save the time of preparation the photographic equipments, so that get into work fastly!
Unique Design for High Efficency
Time and Costs are important for film crews. This becomes more obvious if there are frequent scene changes during production.The 4K215-9HSD-192-CO is based on how monitors are being used by film crews. Whether packing down or setting up a simplified design makes this monitor ready for use quickly. There are no complex setup processes to go through. This innovative design portable aviation aluminum case making it well suited for field production and handling to change the environments with speed.
Time and Costs are important for film crews. This becomes more obvious if there are frequent scene changes during production.The 4K215-9HSD-192-CO is based on how monitors are being used by film crews. Whether packing down or setting up a simplified design makes this monitor ready for use quickly. There are no complex setup processes to go through. This innovative design portable aviation aluminum case making it well suited for field production and handling to change the environments with speed.
Portable Sunshade
New extended screen hood, to acquire the ideal visual effect in almost all environments
New extended screen hood, to acquire the ideal visual effect in almost all environments
Two Types of Installation (Optional)
1. Wide view angle, Full HD 1920x1080, bright, colorful display
2. HDMI, 3G-SDI, Ypbpr, Video, Audio(L/R), DVI inputs and HDMI, 3G-SDI, Ypbpr, Video loop-through outputs
3. Special Features:
* Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
* Check Field (Red, Green, Blue, Mono)
* Camera Mode
* Pixel to Pixel
* Center Marker
* Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
* Image Flip (Horizontal, Vertical, Hor&Ver)
* Image Freeze
* Zoom All
* U/D & L/R Zoom
* Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
* Check Field (Red, Green, Blue, Mono)
* Camera Mode
* Pixel to Pixel
* Center Marker
* Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
* Image Flip (Horizontal, Vertical, Hor&Ver)
* Image Freeze
* Zoom All
* U/D & L/R Zoom
4. Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker
5. Built-in LED tally indicators (Red, Green, Yellow)
6. Power using included 12-volt supply or use standard 4-pin XLR
Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It's shows Red highlight over parts of the monochrome image in focus.
Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.
Camera Mode Function
It will be full screen under camera mode.
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.

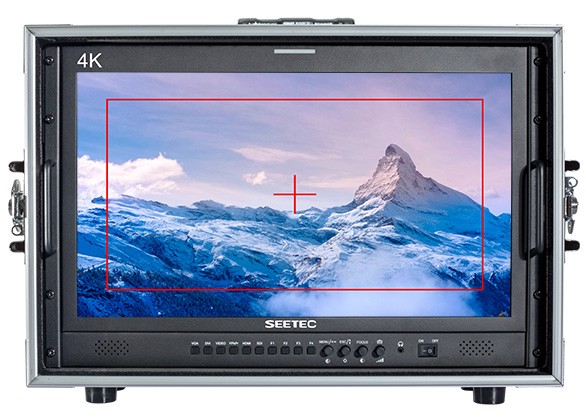

Center Marker & Safe Marker
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%,2.35:1)
Image Flip
The Horizontal, Vertical and Hor&Ver of the image around flip.
Display Spec.
| Model | 4K215-9HSD-192-CO |
| Screen Size | 21.5" IPS |
| Color Depth | 16.7M (8-bit) |
| Resolution | 1920×1080 pixels |
| Pixel Pitch | 248.25x248.25 um |
| Aspect Ratio | 16:9 |
| Brightness | 250cd/m² |
| Contrast Ratio | 3000:1 |
| Backlight | LED |
| Viewing Angle | 89°/89°(L/R) 89°/89°(U/D) |
Input
| 1 X BNC | 3G-SDI |
| 1 X HDMI | HDMI |
| 3 X BNC | YPbPr |
| 1 X DVI-I | DVI-I |
| 1 X BNC | Video |
| 2 X RCA | Audio(L/R) |
Output
| 1 X BNC | 3G-SDI |
| 1 X HDMI | HDMI |
| 3 X BNC | YPbPr |
| 1 X BNC | Video |
Audio
| Audio | Stereo Headphone, Speaker |
SDI Support Format
| 480i/576i |
| 720p(60/59.94/50/30/29/25/24/23.98) |
| 1080i(60/59.94/50) |
| 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
HDMI Support Format
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
| 4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz) |
General
| Input Voltage | DC9～24V |
| Power Consumption | ≤15W |
| Working Temperature | -10°C~50°C |
| Storage Temperature | -20°C~60°C |
| Unit Size | 511.6Lx355.5Hx41.87D (mm)/ 590Lx410Hx260D(mm) (with suitcase) |
| Unit Weight | 14.5kg(with suitcase) |
Advanced Features
| * Peaking Focus Assist(Red highlight over parts of the monochrome image in focus) |
| * Center Marker |
| * Screen Marker (80%,85%,90%,93%,96%,2.35:1) |
| * Image Freeze |
| * Image Flip (H, V, H/V) |
| * Camera Mode |
| * Pixel-to-Pixel |
| * Check Field (Red,Green,Blue,Mono) |
| * Zoom All (Nonsupport in 4K input) |
| * U/D & L/R Zoom (Nonsupport in 4K input) |
| * Aspect Ratio (Nonsupport in 4K input) |
| * Custom Color Temperature |
| * Built-in LED tally indicators |

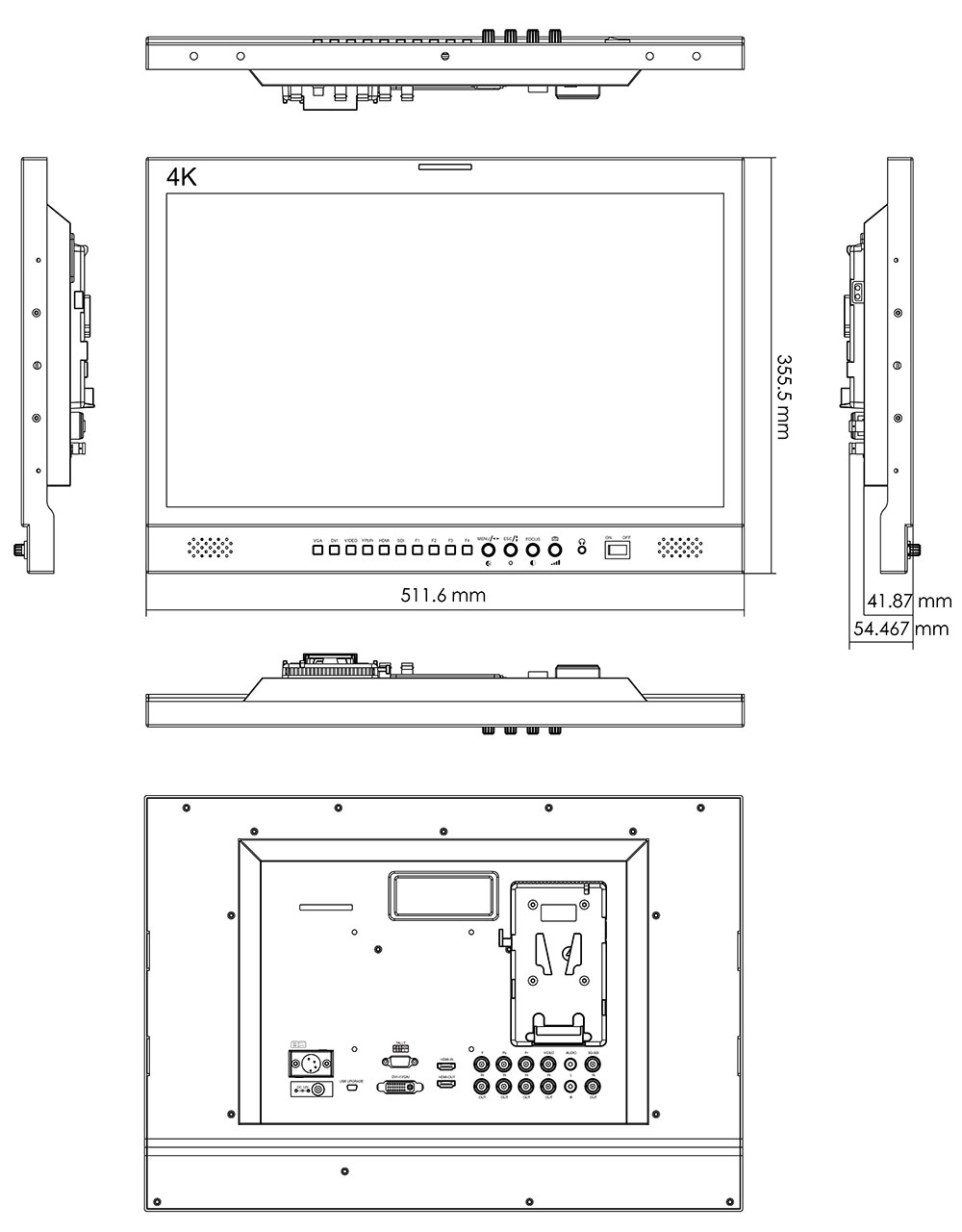

Dimensions (Unit: mm)
Flexible Your Workflow
Broadcast monitoring for live production, broadcast and post production
SEETEC 4K215-9HSD-192-CO is an incredibly versatile monitor packed with features support SD/HD/3G-SDI and Ultra HD 4K HDMI 2160p, that make it perfect for broadcast and post! Support both external batteries, 12V DC power and XLR power, you can install it anywhere! Use external batteries on set, or plug it into standard power in your news rooms, vans, and post facilities.
Broadcast monitoring for live production, broadcast and post production
SEETEC 4K215-9HSD-192-CO is an incredibly versatile monitor packed with features support SD/HD/3G-SDI and Ultra HD 4K HDMI 2160p, that make it perfect for broadcast and post! Support both external batteries, 12V DC power and XLR power, you can install it anywhere! Use external batteries on set, or plug it into standard power in your news rooms, vans, and post facilities.
Live Broadcast
The ideal rack mount monitoring solution for broadcasters
When you're working on a multi camera studio production, you need to see all of your sources, graphics, keys and program displays at the same time. 4K215-9HSD-192-CO includes tally lights on the front and near panel displayed in red, green or yellow tally signal. This means during live production you will always know when you are recording or on-air. The amazing clarity of the Full HD resolution screen means you can easily check focus and watch for color consistency across all of your cameras!
The ideal rack mount monitoring solution for broadcasters
When you're working on a multi camera studio production, you need to see all of your sources, graphics, keys and program displays at the same time. 4K215-9HSD-192-CO includes tally lights on the front and near panel displayed in red, green or yellow tally signal. This means during live production you will always know when you are recording or on-air. The amazing clarity of the Full HD resolution screen means you can easily check focus and watch for color consistency across all of your cameras!
Broadcast Trucks
Incredibly thin mount design for when space is tight!
SEETEC 4K215-9HSD-192-CO is ideal for the limited space in broadcast news trucks. Its super thin design, so it fits in the shallow racks mounted on the inside walls of news vans and trucks. You get both external battery, DC power and XLR power, flexible use it anywhere. There are even built in safe frame guides that make it easy to see safe picture area during live production.
Incredibly thin mount design for when space is tight!
SEETEC 4K215-9HSD-192-CO is ideal for the limited space in broadcast news trucks. Its super thin design, so it fits in the shallow racks mounted on the inside walls of news vans and trucks. You get both external battery, DC power and XLR power, flexible use it anywhere. There are even built in safe frame guides that make it easy to see safe picture area during live production.
Innovative Design Portable Aviation Aluminum Case Optional
Unique design for high efficiency
Optional assembly of portable aluminum case, can effectively protect the monitor and easy to carry and transport, suitable for harsh shooting environment.
Time and Costs are important for film crews. This becomes more obvious if there are frequent scene changes during production. The SEETEC 4K215-9HSD-192-CO is based on how monitors are being used by film crews. Whether packing down or setting up a simplified design makes this monitor ready for use quickly. There are no complex setup processes to go through.
Unique design for high efficiency
Optional assembly of portable aluminum case, can effectively protect the monitor and easy to carry and transport, suitable for harsh shooting environment.
Time and Costs are important for film crews. This becomes more obvious if there are frequent scene changes during production. The SEETEC 4K215-9HSD-192-CO is based on how monitors are being used by film crews. Whether packing down or setting up a simplified design makes this monitor ready for use quickly. There are no complex setup processes to go through.

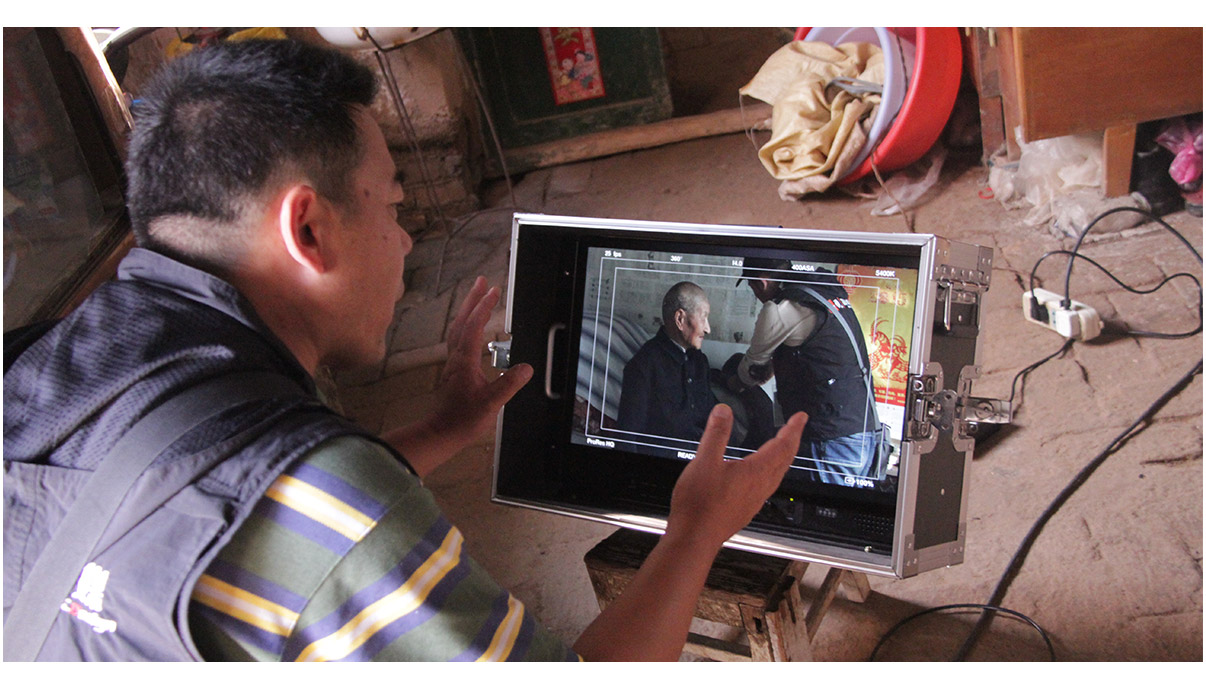

Film Crew Monitor
Now it's easy to get perfect focus and framing, everyone can see!
You get SEETEC 4K215-9HSD-192-CO monitor, that's 21.5 inch large enough and full resolution allows you to see image every pixel, and with safe frame helpful for composition during shooting or title placement, ideal for the entire crew to see and tools such as peaking focus assist for focus accurately are ideal for camera assistants.
Now it's easy to get perfect focus and framing, everyone can see!
You get SEETEC 4K215-9HSD-192-CO monitor, that's 21.5 inch large enough and full resolution allows you to see image every pixel, and with safe frame helpful for composition during shooting or title placement, ideal for the entire crew to see and tools such as peaking focus assist for focus accurately are ideal for camera assistants.

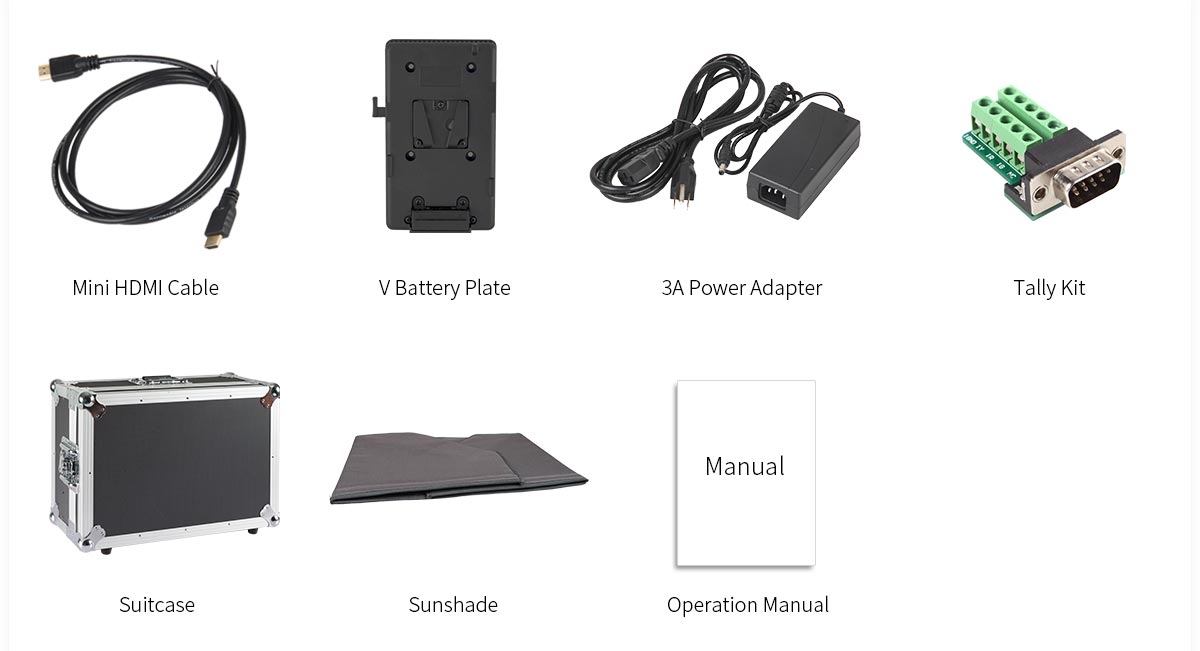

Standard Accessories:
1× Mini HDMI Cable
1× V Battery Plate
1× 3A DC Power Adapter
1× Tally Kit
1× Suitcase
1× Sunshade
1× Operation Manual
1× Mini HDMI Cable
1× V Battery Plate
1× 3A DC Power Adapter
1× Tally Kit
1× Suitcase
1× Sunshade
1× Operation Manual
