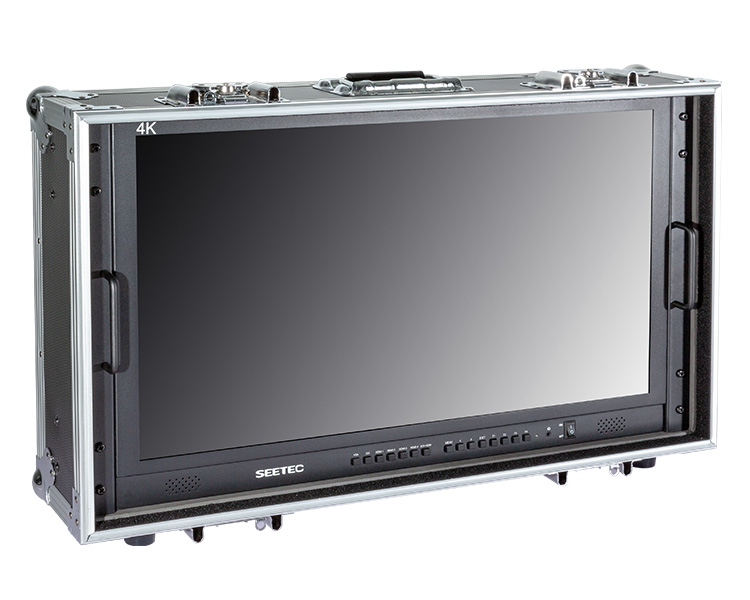

27" 4K(3840 x 2160) Ultra-HD Resolution Quad Split Display Carry-on Broadcast Director Monitor Built-in SDI ? HDMI Cross Converter 4K280-9HSD-SCH-CO
正在提交中....
Contact Us
OVERVIEW
FEATURES
SPECIFICATIONS
VIDEO
APPLICATION
ACCESSORIES
SEETEC Professional Broadcast LCD Monitor has been widely used in TV news production, broadcasting house, TV broadcasting truck and other fields. Since this series is working with other adjacent professional equipments, therefore, high stability, high reliability and electromagnetic compatibility are very important to make sure the whole system work smoothly.
The full metal case not only makes the product more solid and durable, but also solves the problem of heat dissipation. Full metal case improves the anti-interference capability! More Stablity and Reliability.
More Auxiliary Functions
More professional functions assist users to accurately monitor when shooting, making and playing movies/ videos.

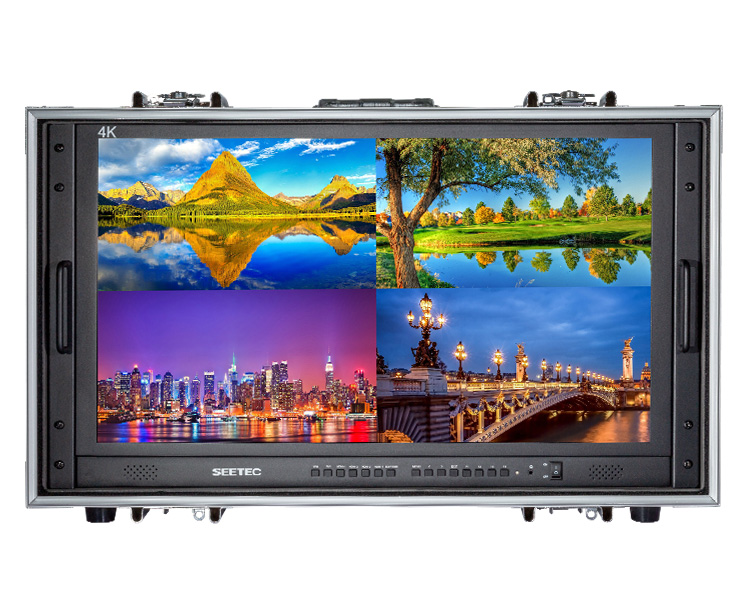

Quad Split LCD Display
SEETEC new 4K280-9HSD-SCH-CO is the professional cost-effective Quad-split LCD Monitors with 4 x HDMI inputs, provides a new display solution for a wide range of applications that require ultrahigh resolution contents.

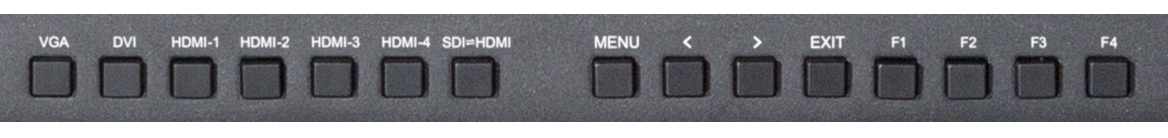

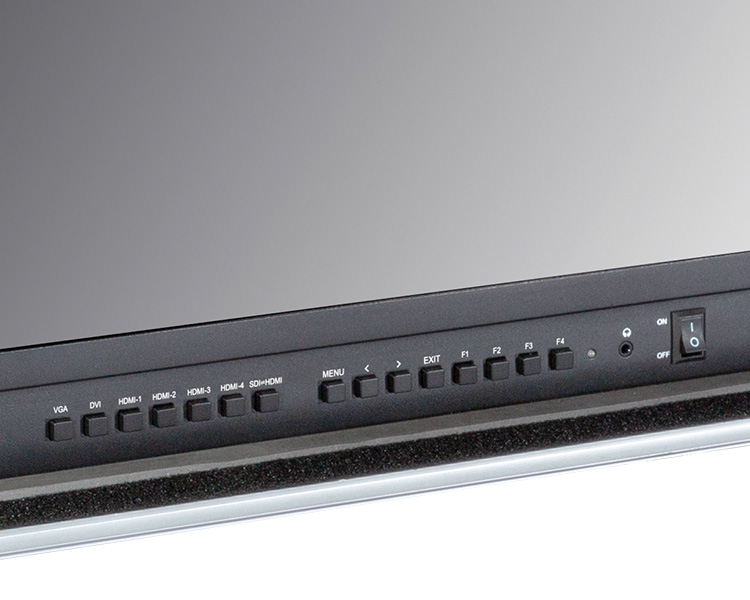

High Efficiency OSD Operation Design
You can fast and direct switching signal, and F1-F4 user-definable buttons, witch can be customized as shortcut function, such as peaking, check field, display rotate, center marker, safe marker etc.
Rich Interfaces
Multiple inputs meet the best need of various professional display solutions.
-
Built-in SDI ? HDMI Cross Converter
You can easy realize SDI/ HDMI signal Conversion by SEETEC 4K280-9HSD-SCH-CO, no need other equipment. It is setting quickly, you just need to press the button SDI ? HDMI to switch indicator color.Input:
1 X HDMI, 1 X SDIOutput:
1 X HDMI, 1 X SDISDI ? HDMI Cross Conversion Mode:
Red：HDMI to HDMI, SDI to SDI
Green：SDI to HDMI, HDMI to SDI
Yellow：HDMI to SDI, HDMI to HDMI
Red/ Green Flashing：SDI to HDMI，SDI to SDI
-

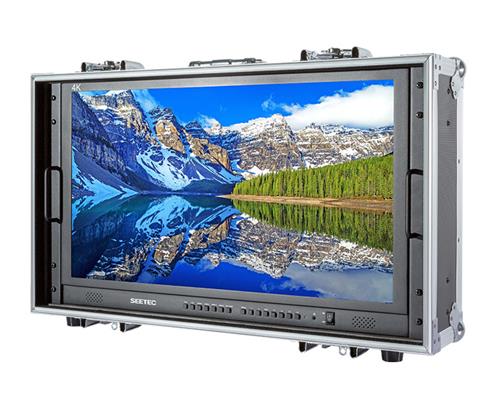

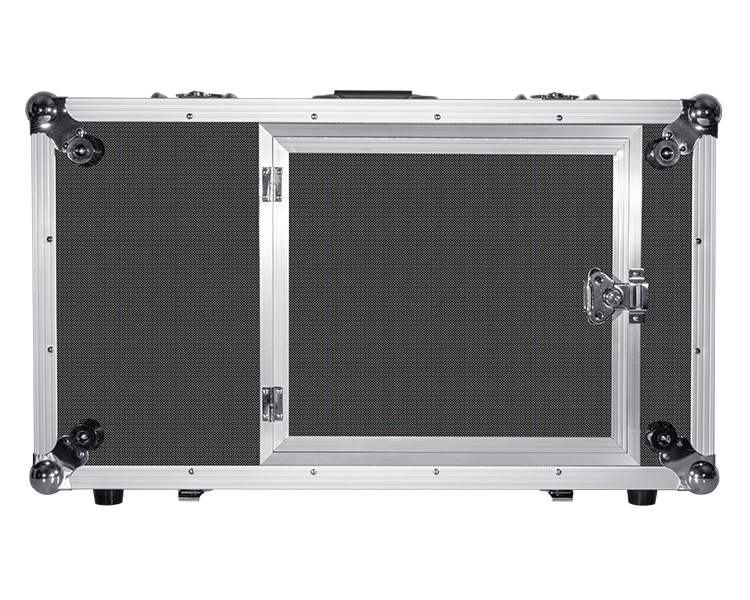

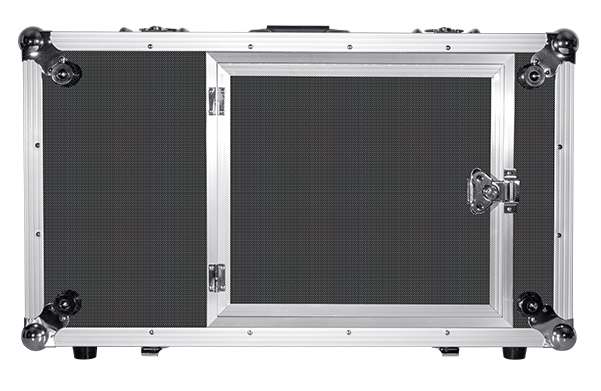

Innovative Design Portable Aviation Aluminum Case
Specifically Design for Field Production
-
Unique Design for High Efficency
Time and Costs are important for film crews. This becomes more obvious if there are frequent scene changes during production. The 4K280-9HSD-SCH-CO is based on how monitors are being used by film crews. Whether packing down or setting up a simplified design makes this monitor ready for use quickly. There are no complex setup processes to go through.
-

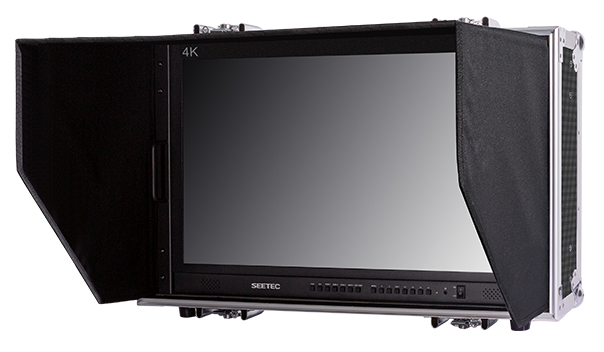

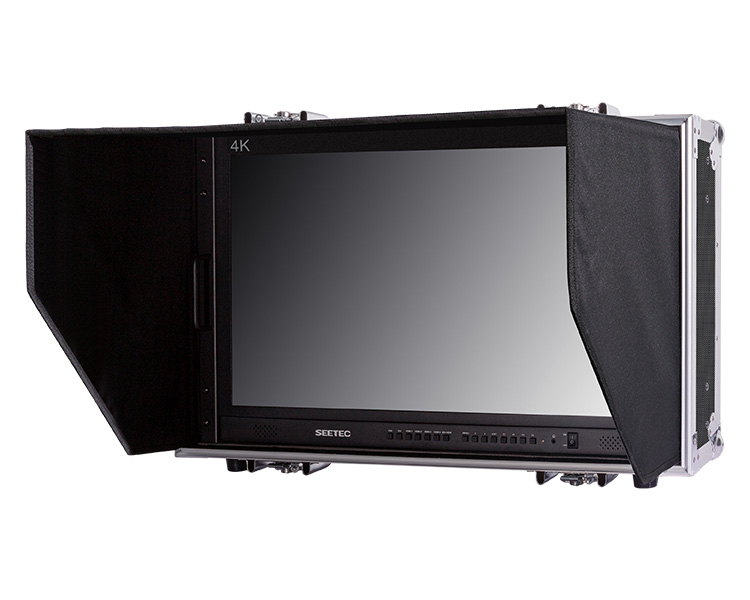

Collapsable Sunshade
Design for easier viewing in bright environments.
* Quad Split Display (1P, 2P LR, 2P TB, 2P PIP, 4P)
* Peaking Focus Assist
* Display Rotate (0°, 90°, 180°, 270°)
* PAnamorphic（x1.33, x1.5, x1.8, x2.0）
* Check Field (Red, Green, Blue, Mono)
* Grid Marker（3X3, 6X6, 9X9）
* Image Freeze
* Zoom
* Pixel to Pixel
* Center Marker
* Safety Marker (80%, 85%, 90%, 93%, 96%, 4:3, 2.39:1, 2.35:1, 1.85:1)
* Line Color (Red, Green, Blue, White)
-
Quad View
Support 4x 4K HDMI, 3G-SDI, VGA, DVI input
Dual View
Meet your different screen display needs.
Input Swap
To exchange the input signal of the split screen.
Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It's shows white highlight over parts of the image in focus.
Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.

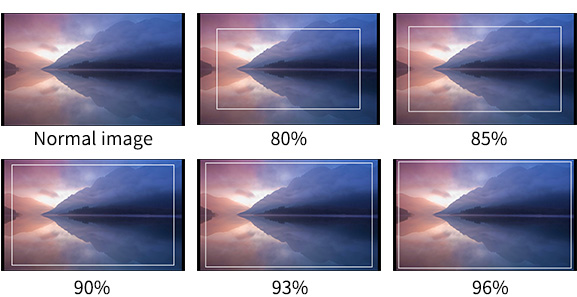

Center Marker & Safe Marker
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%). You can switch the Mark color between Red, Green, Blue and White according to different tone of the subject.
Image Flip
The 90°, 180°, 270°of the image around flip.
| Model | 4K280-9HSD-SCH-CO |
| Screen Size | 27" |
| Color Depth | 1.07B (10 bit) |
| Resolution | 3840×2160 pixels |
| Pixel Pitch | 0.1554 (H) × 0.1554(V) mm |
| Aspect Ratio | 16:9 |
| Brightness | 400cd/m² |
| Contrast Ratio | 1200:1 |
| Backlight | LED |
| Viewing Angle | 178°(H) / 178°(V) |
| 4 X HDMI | HDMI (HDMI2.0x1 support 4K 60HZ; HDMI1.4x3 support 4K 30HZ) |
| 1 X DVI | DVI |
| 1 X VGA | VGA |
| 2 X RCA | Audio(L/R) |
| 1 X DB-9 | Tally |
| Audio Out | Headphone, Speaker |
| HDMI 2.0: 4K UHD 2160p (23.98/24/25/29.97/30/50/59.94/60) |
| HDMI 1.4: 4K UHD 2160p (23.98/24/25/29.97/30) |
| 480p/576p |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
| SDI to HDMI, SDI to SDI, HDMI to SDI, HDMI to HDMI |
| 3G-SDI:1080P(60/59.94/59/50) |
| HD-SDI:1080P(30/29.97/25/24) |
| 1080PsF24 |
| 720P(60/59.94/50/30/25/24) |
| 1080P(60/59.94/50/30/29.97/25/24) |
| 1080PsF24 |
| 720P(60/59.94/50/30/25/24) |
| Input Voltage | DC12～24V (XLR) |
| Power Consumption | ≤45W |
| Working Temperature | -10°C~50°C |
| Storage Temperature | -20°C~60°C |

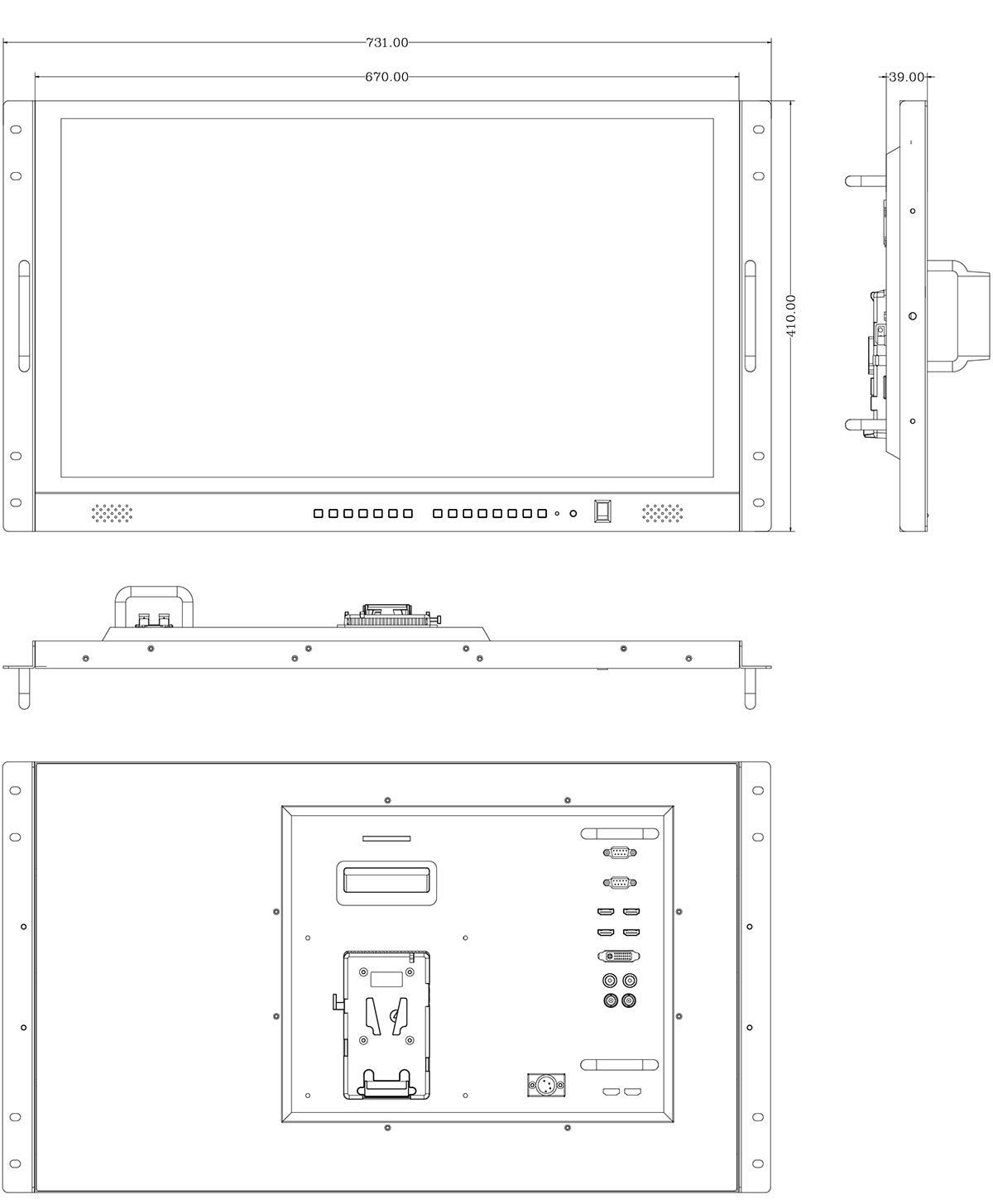

| Unit Size (mm) | 731L×410H×39D (mm) (W/O Suitcase) / 780L×470H×250D (mm) (W/ Suitcase) |
| Unit Weight | 21.7kg (with Suitcase) |
| * Quad Split Display (1P, 2P LR, 2P TB, 2P PIP, 4P) |
| * Peaking Focus Assist |
| * Anamorphic（x1.33, x1.5, x1.8, x2.0） |
| * Display Rotate (0°, 90°, 180°, 270°) |
| * Check Field (Red, Green, Blue, Mono) |
| * Grid Marker(3X3, 6X6, 9X9) |
| * Image Freeze |
| * Zoom |
| * Pixel to Pixel |
| * Center Marker |
| * Safety Marker (80%, 85%, 90%, 93%, 96%, 4:3, 2.39:1, 2.35:1, 1.85:1) |
| * Line Color (Red, Green, Blue, White） |
| * Color Temperature Adjustment |
| * Built-in LED tally indicators (Red, Green, Yellow) |

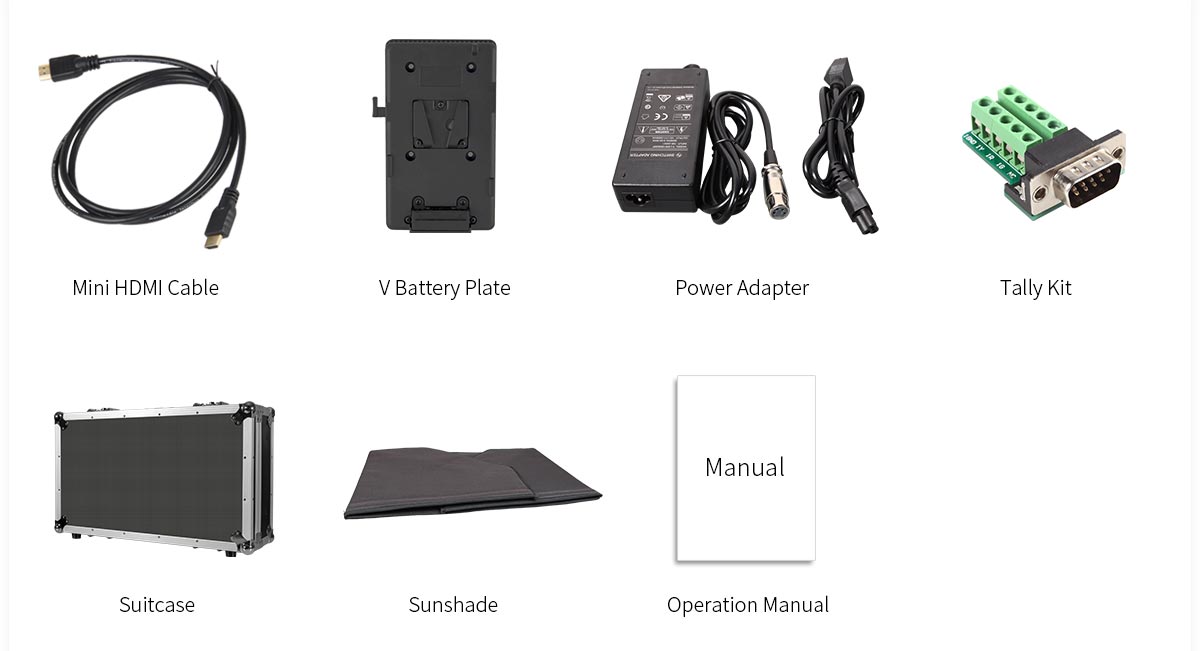

1× Mini HDMI Cable
1× V Battery Plate
1× 5A Power Adapter
1× Tally Kit
1× Suitcase
1× Sunshade
