17.3" Aluminum Design 1920×1080 Carry-on Broadcast Director Monitor with 3G-SDI HDMI AV YPbPr P173-9HSD-CO
Model：P173-9HSD-CO
Introduction
Screen Size： 17.3"
Resolution： 1920x1080 pixels
Aspect ratio： 16:9
Brightness： 300cd/m2
Input
3G-SDI, HDMI, YPbPr, DVI, Video, Audio(L/R)
Output
3G-SDI, HDMI, YPbPr, Video, Stereo Headphone, Internal Speaker
DM
Shop/2018/6/173 215-Specification.jpg
Download
正在提交中....
Contact Us
OVERVIEW
FEATURES
SPECIFICATIONS
VIDEO
APPLICATION
ACCESSORIES
SEETEC new generation of Carry-On Monitor can be considered a breakthrough and another step up. Variety of sizes available, 17.3'', 21.5'', 23.8'', 28''. A new concept of industrial design takes the structure and space usage of this monitor to an exterme. Whether packing down or setting up a simplified design makes this monitor ready for use quickly. There are no complex setup processes to go through.

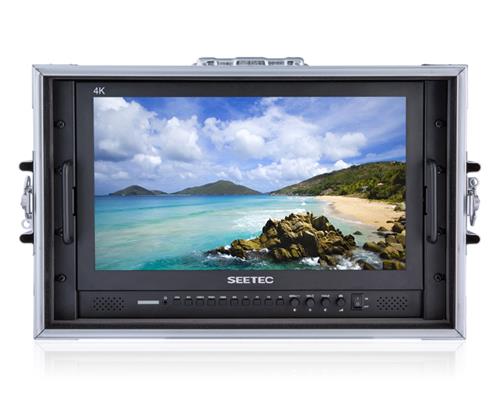

1920X1080 Full HD Panel
With the P173-9HSD-CO's 17.3-inch 1920×1080 Full HD panel what you see is truly viewing angles outputting crisp, clear shots on the field, which means less time in the editing room. The P173-9HSD-CO's Full HD Panel is the tool of choice for high quality color reproduction.
Innovation OSD Operation

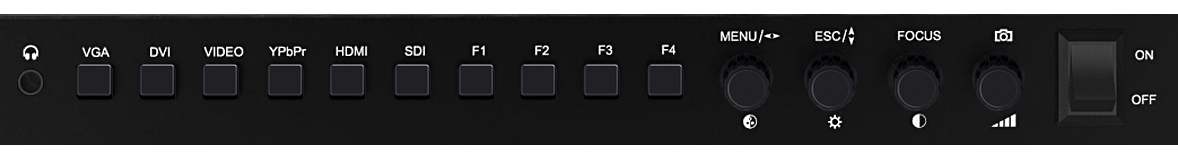

P173-9HSD-CO not only set up four "F key" for peaking focus asist, check field, camera mode function, pixel to pixel, Center Marker, Safe Marker, Image Flip and so on, reserves the knob for professional users. Double functions and knob type coding switch are SEETEC's exclusive technology feature, which will bring you more convenient and rapid operate feeling.

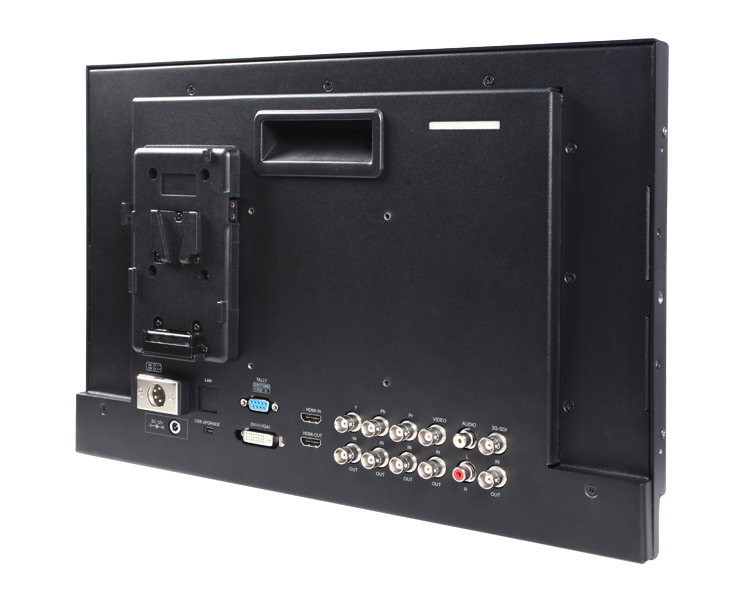

Multiple Inputs and Outputs
Multiple input formats meet the needs of the professional input and display functions with all HD, SD, analogue video signal inputs. The monitor comes with 3G HD-SDI, HDMI, Composite, and Component input and ouput.
P173-9HSD-CO has both HDMI and SDI in and out, to allow it not only display live signals, but also send them out to other monitors simultaneously. It's able to display live picture on multiple displays at the same time while it still maintains the original. video quality.
-
3-color Tally Light
Both front and rear side
There is front and rear TALLY lights for with 3 colors display (Red, Green, Yellow), and controlled via DB-9 ports on the rear panel.
-

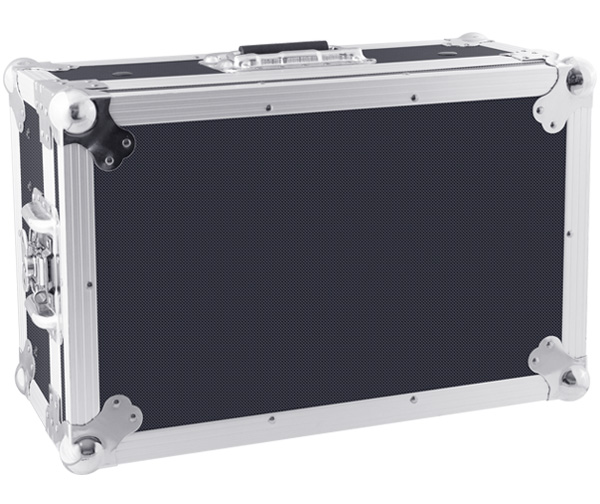

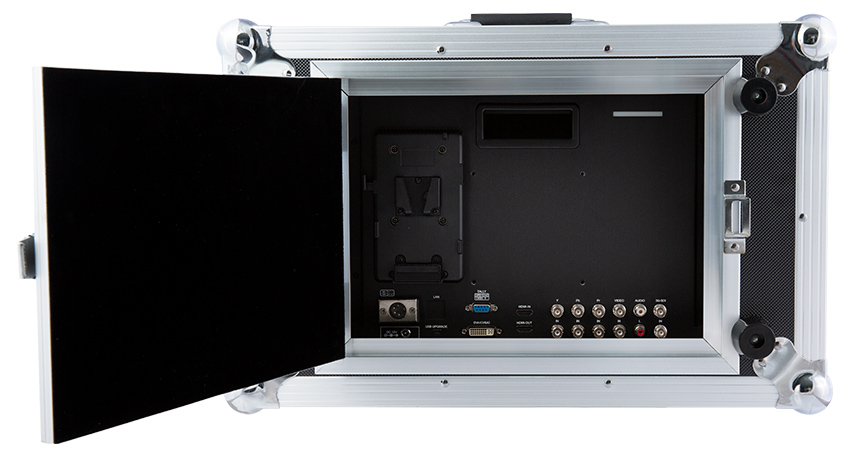

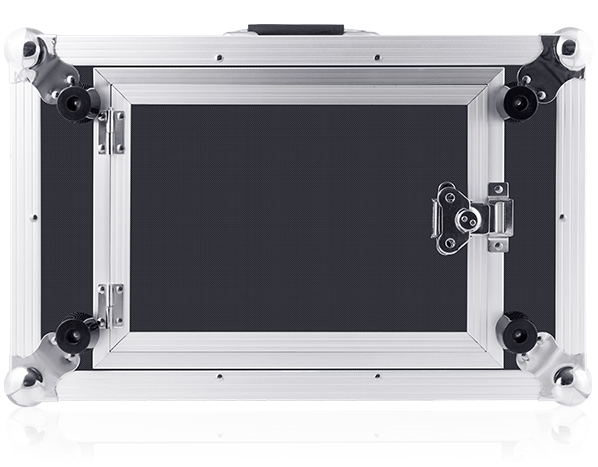

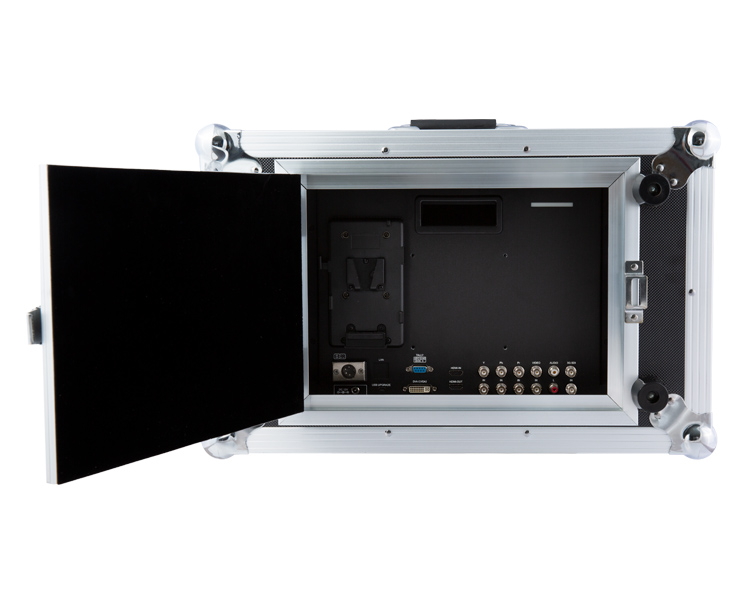

Innovative design portable Aviation Aluminum Case
Specifically Design for Field Production.
-
Unique Design for High Efficency
Time and Costs are important for film crews. This becomes more obvious if there are frequent scene changes during production. The P173-9HSD-CO is based on how monitors are being used by film crews. Whether packing down or setting up a simplified design makes this monitor ready for use quickly. There are no complex setup processes to go through.
* Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
* Check Field (Red, Green, Blue, Mono)
* Camera Mode
* Pixel to Pixel
* Center Marker
* Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
* Image Flip (Horizontal, Vertical, Hor&Ver)
* Image Freeze
* Zoom All
* U/D & L/R Zoom

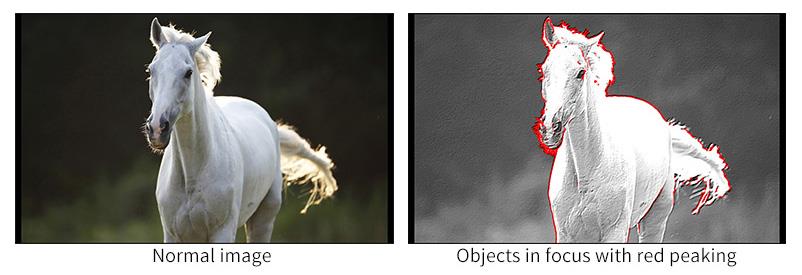

The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It's shows Red highlight over parts of the monochrome image in focus.

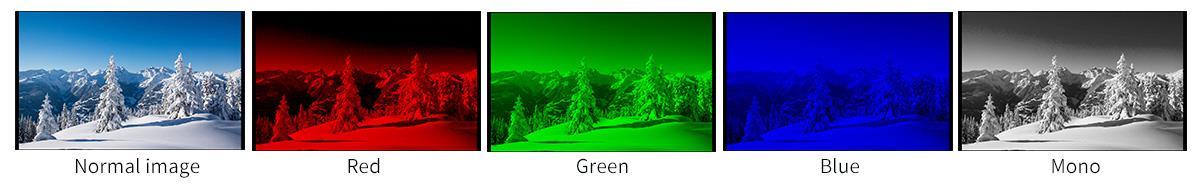

Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.

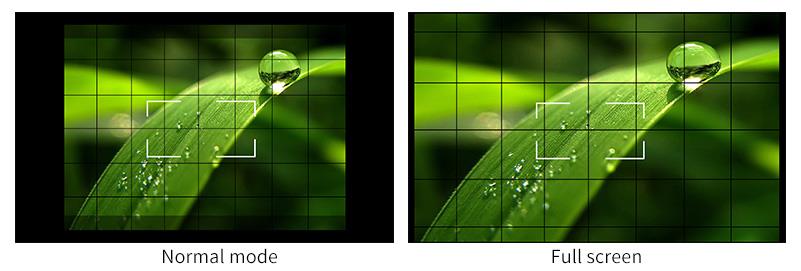

It will be full screen under camera mode.

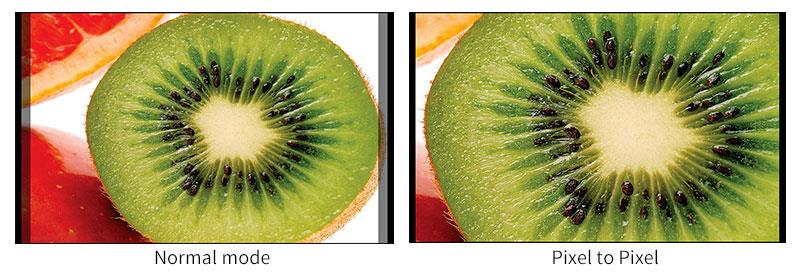

Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.

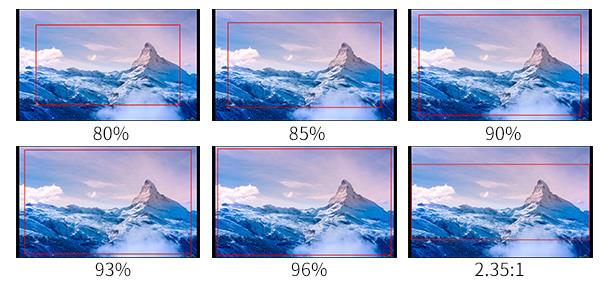

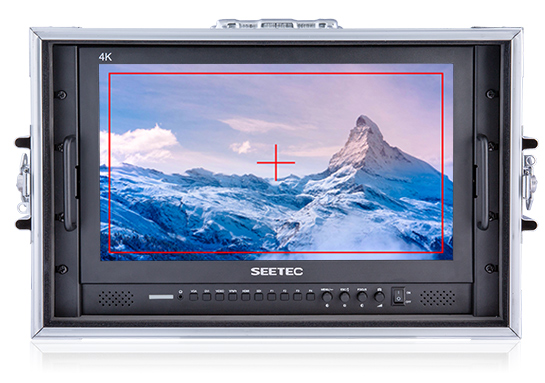

Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%,2.35:1)

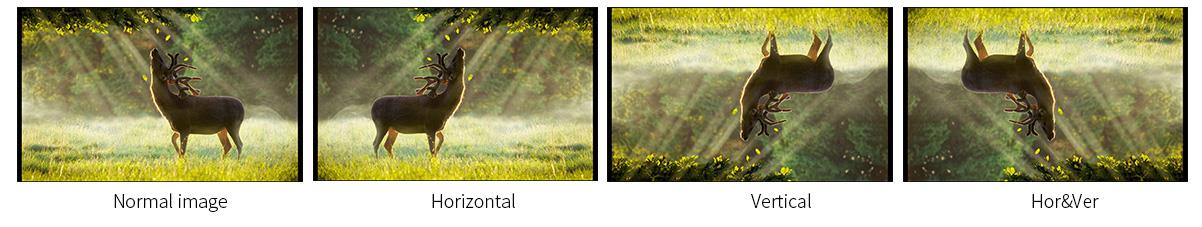

The Horizontal, Vertical and Hor&Ver of the image around flip.
| Model | P173-9HSD-CO |
| Screen Size | 17.3" |
| Color Depth | 16.7M |
| Resolution | 1920×1080 pixels |
| Pixel Pitch | 0.1989(H)×0.1989(V) mm |
| Aspect Ratio | 16:9 |
| Brightness | 300cd/m² |
| Contrast Ratio | 700:1 |
| Backlight | LED |
| Viewing Angle | 89°/89°(L/R) 89°/89°(U/D) |
| 1 X BNC | 3G-SDI |
| 1 X HDMI | HDMI |
| 3 X BNC | YPbPr |
| 1 X DVI-I | DVI-I |
| 1 X BNC | Video |
| 2 X RCA | Audio(L/R) |
| 1 X BNC | 3G-SDI |
| 1 X HDMI | HDMI |
| 3 X BNC | YPbPr |
| 1 X BNC | Video |
| Audio Out | Stereo Headphone, Speaker |
| 480i/576i |
| 720p(60/59.94/50/30/29/25/24/23.98) |
| 1080i(60/59.94/50) |
| 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
| 4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz) |
| Input Voltage | DC9～24V |
| Power Consumption | ≤26W |
| Working Temperature | -10°C~50°C |
| Storage Temperature | -20°C~60°C |

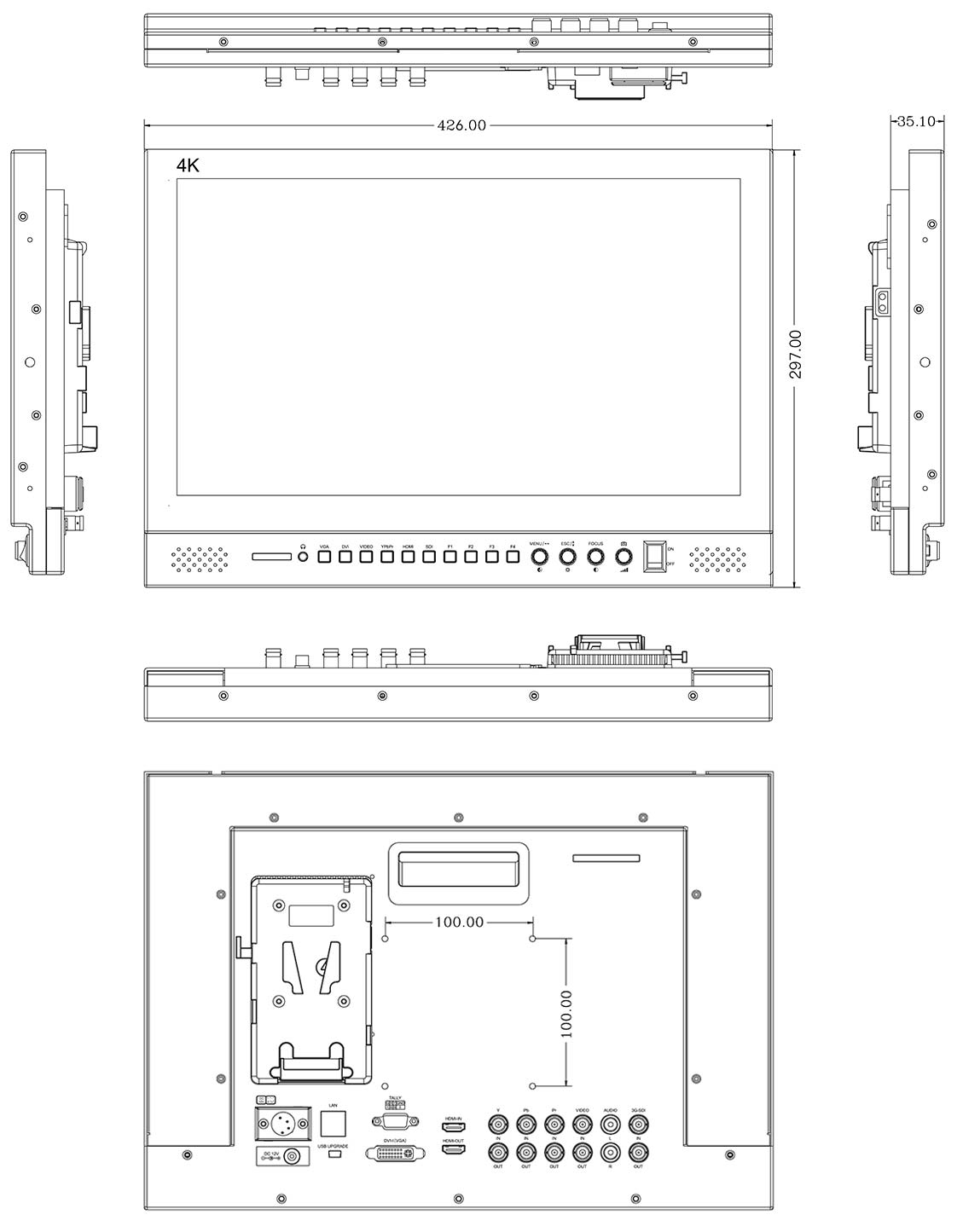

| Unit Size | 426L×297H×35.1D mm/ 503L×305H×230D mm (With Suitcase) |
| Unit Weight | 10.7kg (With Suitcase) |
| Outer Carton Qty | 1 |
| Outer Carton Size | 590*300*400 (mm) |
| Gross Weight | 13.4kgs |
| * Peaking Focus Assist(Red highlight over parts of the monochrome image in focus) |
| * Center Marker |
| * Screen Marker (80%,85%,90%,93%,96%,2.35:1) |
| * Image Freeze |
| * Image Flip (H, V, H/V) |
| * Camera Mode |
| * Pixel-to-Pixel (Nonsupport in 4K input) |
| * Check Field (Red,Green,Blue,Mono) |
| * Zoom All (Nonsupport in 4K input) |
| * U/D & L/R Zoom (Nonsupport in 4K input) |
| * Aspect Ratio (Nonsupport in 4K input) |
| * Custom Color Temperature |
| * Built-in LED tally indicators |
1× Mini HDMI Cable
1× V Battery Plate
1× 3A DC Power Adapter
1× Tally Kit
1× Suitcase
1× Sunshade
1× Operation Manual
